E2000 Fiber Optic Connector

Brand Name : XDK

Model Number : Fiber optic connector

Certification : ISO, OHSAS18001,RoHS,CRP,UL

Place of Origin : China/Vietenam

MOQ : 1

Payment Terms : L/C, D/A, D/P, Western Union, T/T

Supply Ability : 5000000/month

Delivery Time : around 5 working days

Packaging Details : customizable

Insertion loss : Typical≤0.20dB,max.≤0.30dB

Applications : to make patch cord

Packing : Customized

Repeatability : ≤0.20dB

Exchangeability : ≤0.20dB

Durability : 1000 Mating, max≤0.20dB

Channel Number : Single core, dual-core

Housing Material : Plastic or metal

Color : OEM

Name : fiber optic fast/quick connector

Contact Now

Singlemode/Multimode ST/SC/FC/LC/MTRJ/MU/E2000 Connectors for networking cabling

Description of ST/SC/FC/LC/MTRJ/MU/E2000 Connectors

Fiber Optic Connector is an important component used in the fiber optic network. It is also the key part used in fiber optic patch cable and fiber optic pigtail. There are various fiber optic connectors.at Fiber Mania, we provide a complete line of one piece fiber optic connectors with various types, including standard connectors and irregular types and epoxy types, for both single-mode and mult-mode applications.

Advantanges of ST/SC/FC/LC/MTRJ/MU/E2000 Connectors

Low insertion loss
Corrosion resistant body
Ultra-low back reflection
For 3.0mm, 2.0mm jacket or 900um buffer
One Piece with pre-domed ceramic ferrule is designed for easy assembly
Meets Telecordia-GR-326-CORE specifications

Parameters of ST/SC/FC/LC/MTRJ/MU/E2000 Connectors

Item

Parameter

Connector Type

ST,SC,FC,LC,MTRJ,MU,E2000

Fiber Type

Insertion Loss	Typical≤0.20dB,max.≤0.30dB
Repeatability	≤0.20dB
Exchangeability	≤0.20dB
Durability	1000 Mating, max≤0.20dB
Channel Number	Single core, dual-core
Housing Material	Plastic or metal
Boot(Option)	3.0mm, 2.0mm or 0.9mm
Ferrule	Ceramic (ZrO2) or customized
Operating Temperature	-40℃ to +80℃
Storage Temperature	-40℃ to +85℃

Production line of ST/SC/FC/LC/MTRJ/MU/E2000 Connectors

E2000 Fiber Optic Connector

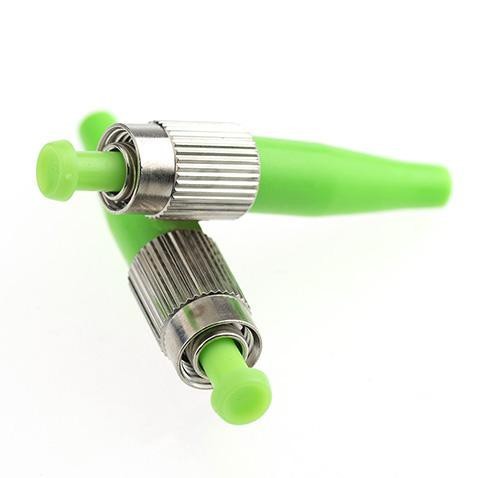

Images of ST/SC/FC/LC/MTRJ/MU/E2000 Connectors

E2000 Fiber Optic Connector

Product Tags:

MTRJ Fiber Optic Connector

MU Fiber Optic Connector

E2000 Fiber Optic Connector

E2000 Fiber Optic Connector Images
